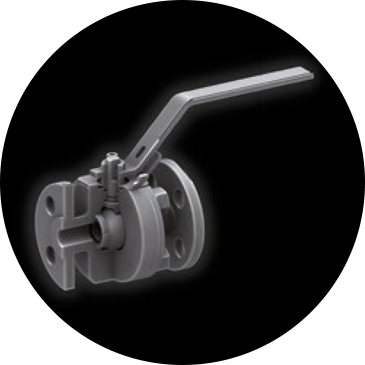

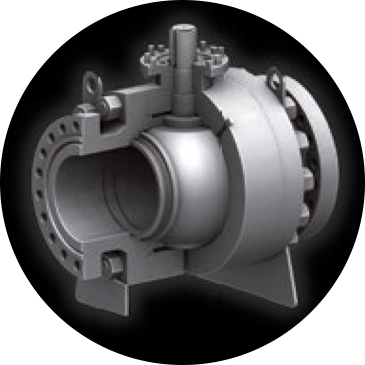

Floating side entry ball valves

SIZES: ½” – 10”

PRESSURE CLASSES: ANSI 150 – 2500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Two or three pieces body construction; bolted joints

• Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium

• Overlays: Alloy 625 / 316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

• Soft or Metal Seated

• Metal Seated construction to suit very severe-service requirements.


Special constructions available for extremely High and Low Temperature (Cryogenic), erosive/abrasive, corrosive service

• Bidirectional design available

• Overlay on dynamic sealing area

• Cladding in Seat Pocket Areas

• Fully Internally Clad

• Specific design for HIPPS, ESD application

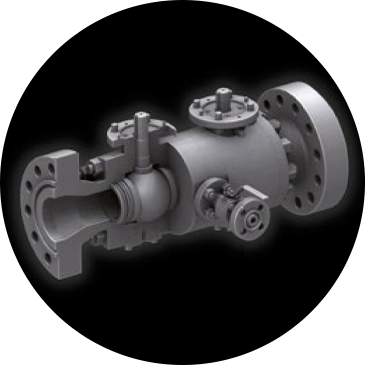

Modular double block & bleed ball valves

SIZES: ½” – 24”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Available in floating and trunnion construction

• Split body construction; bolted joints; cartridge type

• Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium

• Overlays: Alloy 625 /316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

• Soft or Metal Seated

• Single or Double Piston Effect Seat

• Double block and bleed

• Overlay on Sealing Surfaces Only

• Cladding in Seat Pocket Areas

• Fully Internally Clad

• Special constructions available for High and Low


Temperature (Cryogenic), erosive /abrasive, corrosive service.

CONFIGURATION AVAILABLE

Ball/Needle/Ball Cartridge Type

Ball/Needle/Ball

Ball/Ball

Ball/Globe

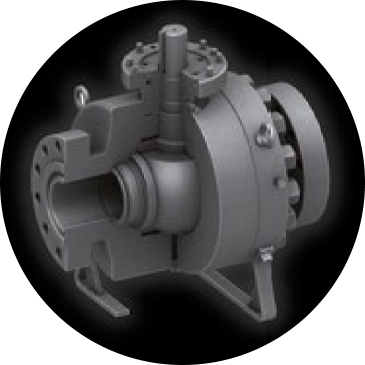

API 6A ball valves

SIZES: ½” – 26.3/4”

PRESSURE CLASSES: API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Top Entry, Split Body, Welded Body, Modular DBB configuration available in both Floating and Trunnion construction

• Extremely wide selection of materials for both body and internals, including: carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium

• Overlays: Alloy 625/316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

• Soft or Metal Seated

• Single or Double Piston Effect Seat

• Double block and bleed

• Fully Internally Clad

• Overlay on Sealing Surfaces Only

• Cladding in Seat Pocket Areas

• Specific design for HIPPS, ESD application

• Special constructions available for High and Low

• Temperature (Cryogenic), erosive/abrasive, corrosive service

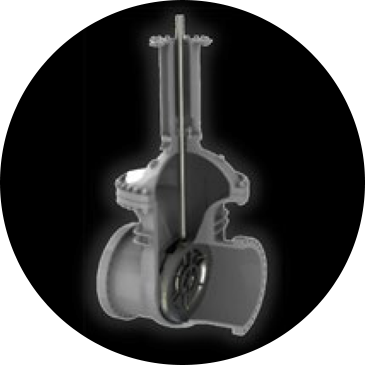

Wedge gate bolted bonnet valves

SIZES: 1.1/2” – 60”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Production Type: Bolted Bonnet, Outside Screwed & Yoke

• Production Type: Bolted Bonnet, Outside Screwed & Yoke

• Wedge Type:

- 1 piece Flexible Wedge for 2” to 60” size valves in all classes

- 1 piece Solid wedge for 1.1/2” to 24” size valves in all classes of light wall Thickness type

- 2 piece Split Wedge for 2” to 60” size valves in all classes

- Double Disc Parallel Seats for 2” to 60” size valves in all classes

• Design Range:

- Heavy wall Thickness Type

(ISO 14313, API 600, BS1414, API 6A)

- Light wall Thickness Type (ASME B16.34, API603)

- Applicable Materials: Carbon Steel, Alloy Steel, Stainless Steel, Special SS, Special Alloy

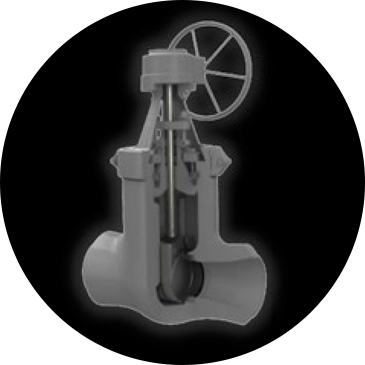

Wedge gate pressure seal valves

SIZES: 1.1/2” – 36”

PRESSURE CLASSES: ANSI 300 – 4500

MAIN FEATURES AND OPTIONS:

• Production Type: Pressure Seal Bonnet, Outside Screwed & Yoke

• Wedge Type

- 1 piece Flexible Wedge for 2” to 36” size valves in all classes

- 1 piece Solid wedge for 1-1/2”to 12” size valves in all classes of Light wall Thickness type

- Double Disc Parallel Seats for 2” to 60” size valves in all classes

• Design Range:

- Heavy wall Thickness Type (API 600, ASME B16.34)

- Light wall Thickness Type (ASME B16.34, API603)

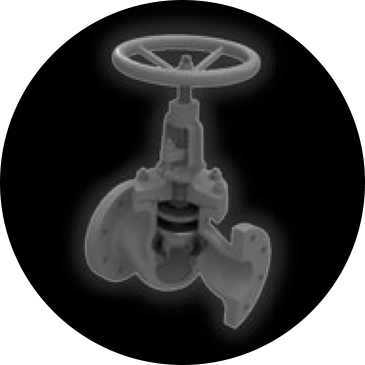

Globe bolted bonnet valves

SIZES: ½” – 36”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Production Type: Bolted Bonnet, Outside

Screwed & Yoke, Straight Pattern, Y Pattern, Angle

• Disc Type: Plug Disc type for 1/2” to 36”

size valves in all classes, Parabolic Disc

type for 1/2” to 36” size

• Design Range: Heavy wall Thickness

Type (ISO 14313, BS1873, API 6A), Light wall Thickness Type (ASME B16.34, API603)

• Applicable Materials:
Carbon Steel, Alloy Steel, Stainless Steel, Special SS, Special Alloy

Globe pressure seal valves

SIZES: ½” – 36”

PRESSURE CLASSES: ANSI 300 – 4500

MAIN FEATURES AND OPTIONS:

• Production Type: Pressure Seal Bonnet, Outside Screwed & Yoke

• Disc Type: Plug Disc type for 1/2” to 36” size valves in all classes

• Design Range: Heavy wall Thickness Type (BS1873, ASME

B16.34), Light wall Thickness Type (ASME B16.34, API603)

• Material selection: WCB/LCB C5/WC1/WC6/WC9

C12/C12A/CF8/CF8M/CF8C

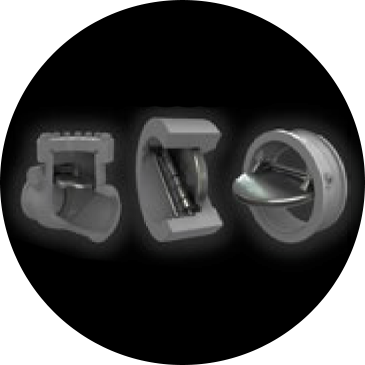

Swing check valves Dual check valves

SIZES: ½” – 60” / PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Production Type:

SWING:

- Bolted bonnet and Pressure seal design available

- Metal Seated

- Disc Type:

Clapper Disc type for 1/2” to 60” size valves in all classes


DUAL:

- Wafer and Monobloc (Flanged/Hub Ends) Bodies available

- Hing pins are retained into the body

- Lug type design option

- Disc Type: Dual Plates type for 1/2” to 60” size valves in all classes

TILTING:

- Bolted Bonnet or Pressure Seal available

- Short Pattern can be supplied Wafer Type or Monobloc (Flanged)

- Disc Type: Tilting Non-Slam Disc type for 1/2” to 60” size valves in all classes Soft seated construction available for bubble-tight shutoff. Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium.

Hardfacings: Stellite, Colmoloy, Tungsten and Chromium Carbides

• Design Range:

- Heavy wall Thickness Type (ISO 14313, API 6D, API 6A, BS1868)

- Light wall Thickness Type (ASME B16.34, API603)

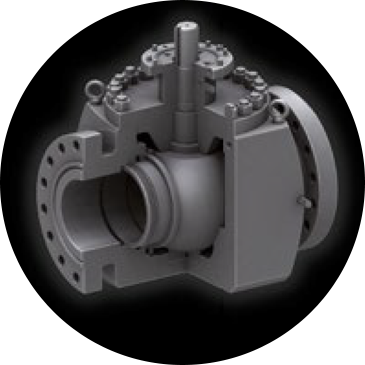

Top entry ball valves

SIZES: ½” – 48”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Trunnion or Floating construction

• Extremely wide selection of materials (forging or casting) for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium

• Overlays: Alloy 625/316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

• Soft or Metal Seated

• Single or Double Piston Effect Seat

• Double block and bleed

• Overlay on Sealing Surfaces Only

• Cladding in Seat Pocket Areas

• Fully Internally Clad

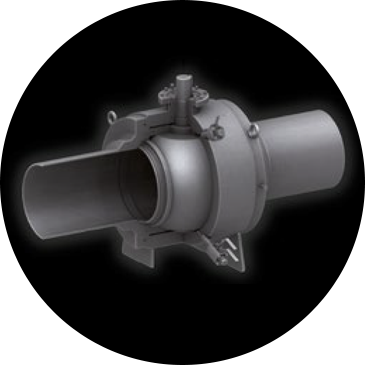

Fully welded body ball valves

SIZES: ½” – 60”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Two or three pieces body sections butt welded together; no leak path to environment

• Specific design for underground service with operable stem extension and bypass system

• Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium

• Overlays: Alloy 625/316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

• Soft or Metal Seated

• Single or Double Piston Effect Seat

• Double block and bleed

• Overlay on Sealing Surfaces Only

• Cladding in Seat Pocket Areas

• Fully Internally Clad

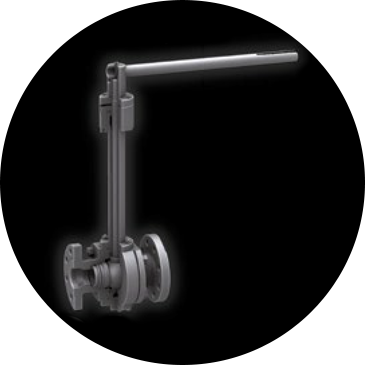

Cryogenic ball valves

SIZES: ½” – 36”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Two or three pieces body construction; bolted joints

• Available in floating and trunnion construction

• Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium

• Overlays: Alloy 625/316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

• Soft or Metal Seated

• Single or Double Piston Effect Seat

• Double block and bleed

• Overlay on Sealing Surfaces Only

• Cladding in Seat Pocket Areas

• Fully Internally Clad

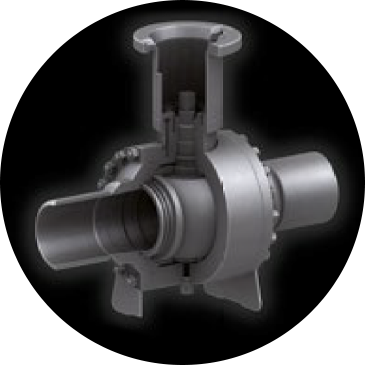

Sub sea applications ball valves

SIZES: ½” – 36”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Top Entry, Split Body, Welded Body, Modular DBB configuration available in both Floating and Trunnion construction

• Subsea Operators and accessories available:

Single & Double acting rack and pinion actuators, Gearboxes, Direct rov interfaces, Diver handwheel interfaces

• Accessories: extended spool, position indicator, override extension, compensation system, manual torque tools, protection cups

• Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium either forged or cast

• Fully or partial Internally Clad

• Overlays: Alloy 625/316L

• Coatings: Tungsten Carbide/Chromium Carbide/ENP

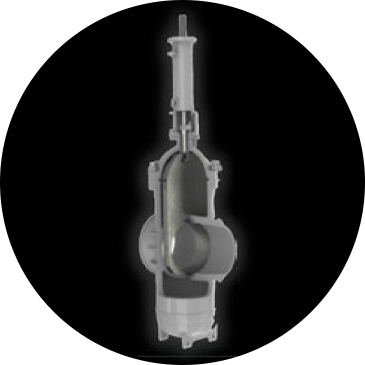

Through conduit slab gate valves

SIZES: 1.1/2” – 56”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Production Type: Top Entry construction, Through conduit suitable for pigging, Floating seats, Anti blowout stem, Cast or forged, Fire safe certified, Double block & bleed, By-directional, Self–relieving design, Rising-Stem and Non-Rising-Stem design available, Low actuation force demand

• Disc Type: 1 piece Solid Disc for 1-1/2” to 56” size valves in all classes

• Design Range:

- API 6D, API 6A, ISO 10423

- Wall Thickness according to ASME B16.34

- End to end dimension according to ASME B16.10

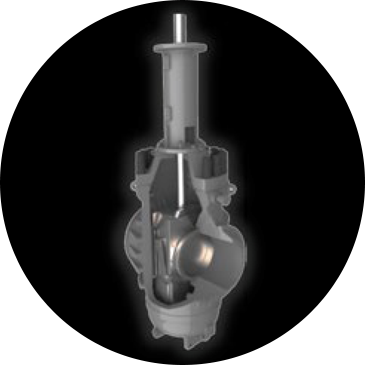

Through conduit double expanding gate valves

SIZES: 2” – 36”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Production Type: Top Entry construction, Through conduit suitable for pigging, Anti blowout stem, Cast or forged, Fire safe certified, Double block & bleed, by-directional, Rising-Stem and Non-Rising-Stem design available, Low actuation force demand

• Disc Type: Double Disc Parallel Seats for 2” to 36” size valves in all classes

• Design Range:

- API 6D, API 6A, ISO 10423

- Wall Thickness according to ASME B16.34

- End to end dimension according to ASME B16.10

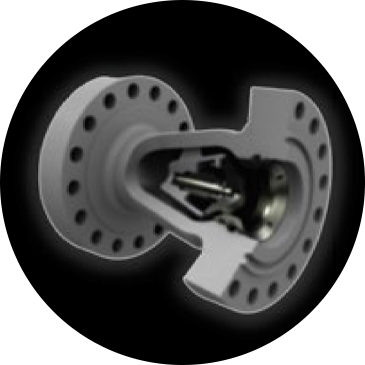

Nozzle check valves

SIZES: ½” – 60”

PRESSURE CLASSES: ANSI 150 – 4500

API 2000 – 15000

MAIN FEATURES AND OPTIONS:

• Production Type:

- Short pattern (std FGV) and long pattern (ANSI B16.10) design available

- Metal Seated

- Soft seated construction available for bubble-tight shutoff

- Valve conduit contour designed to provide maximum fluid-dynamic efficiency

- Different spring selection is available to suit the required range of flow rates, combining minimum pressure drop and no-chattering

• Disc Type: Non-Slam Disc type for 1/2” to 60” size valves in all classes

• Design Range: Heavy wall Thickness Type (ISO 14313, API 594, API 6D, API 6A)

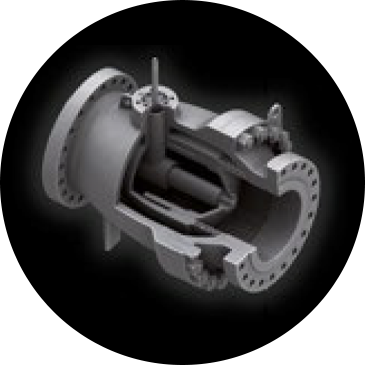

Axial flow valves

SIZES: 2” - 48” / PRESSURE CLASSES: ANSI 150 to 2500

API 2000 to 15000

MAIN APPLICATIONS:

• Production / Treatment / Transmission and Transportation/Fire Pump

• Storage and distribution

• Anti-surge / throttling service

• Choke and by-pass service

• Tank loading/venting and depressurization

MAIN FEATURES AND OPTIONS

• Valves for tight isolation service (ON-OFF)

• Valves for throttling service (FLOW CONTROL)

• Reduced valves stroke for quick closing time (SDV-HIPPS)

• Extended design life and low maintenance interventions

• Balanced-pressure disc design

• Extremely wide selection of materials for both body and internals including carbon steel, low alloy steels, stainless steels, Duplex 22/25 cr, Ni-alloys and titanium.

DESIGN OPTIONS

• PLUG TYPE TRIM DESIGN for large flow rate and high-pressure drop

• (SINGLE) CAGE TRIM DESIGN for gas, liquid and mixed phases service where high-pressure drop is predicted and noise level shall be limited

• (MULTI) CAGE TRIM DESIGN for high-pressure drops and large flow rate. Multi cage trim can be sized to suit any specific

- Light wall Thickness Type (ASME B16.34, API603)

• Large variety of stem seals available, including metal stem seal

• Specific design for HIPPS, ESD application

• Stem equipped with double-acting bearings to withstand both internal and external pressure thrust (deepwater) flow condition with different characteristics
